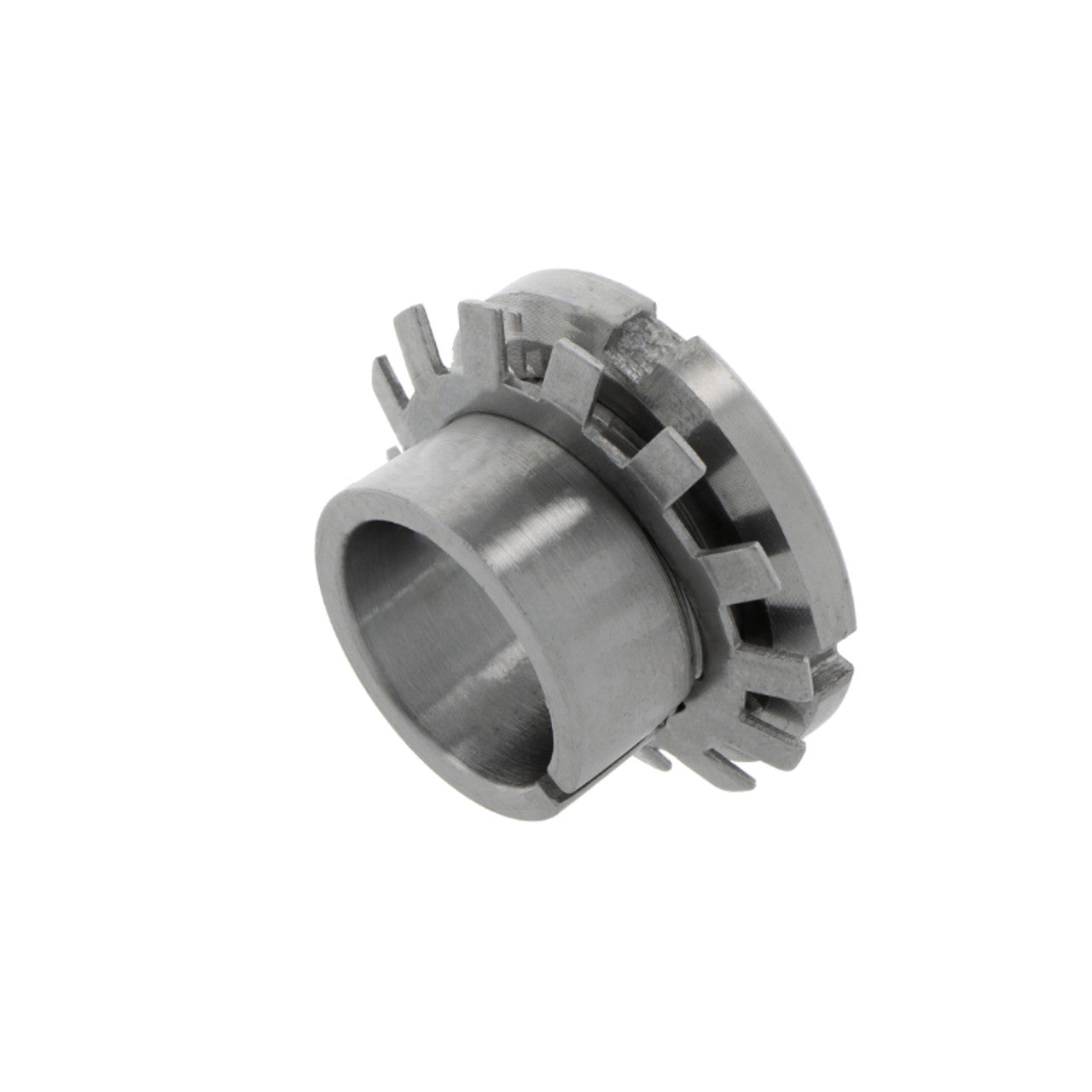

H322 Bearing Adapter Sleeve with Lock Nut & Washer

H322 Bearing Adapter Sleeve with Lock Nut & Washer

$49.99
$79.99 $49.99
Sale Sold out

šŸ› ļø H322 Bearing Adapter Sleeve with Lock Nut & Washer

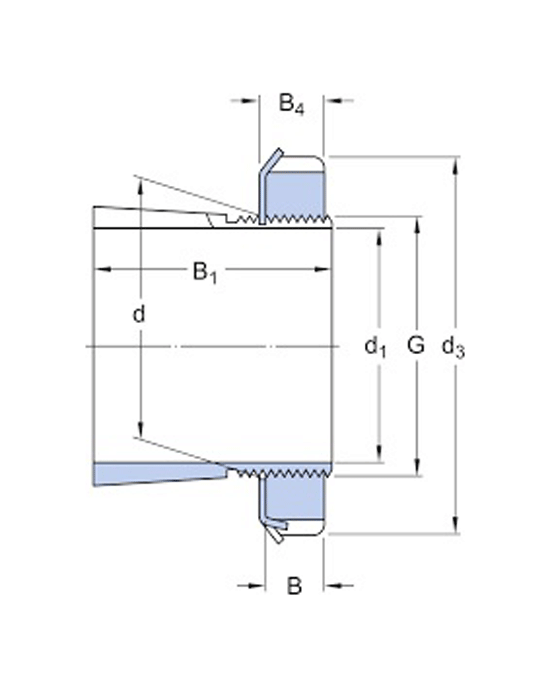

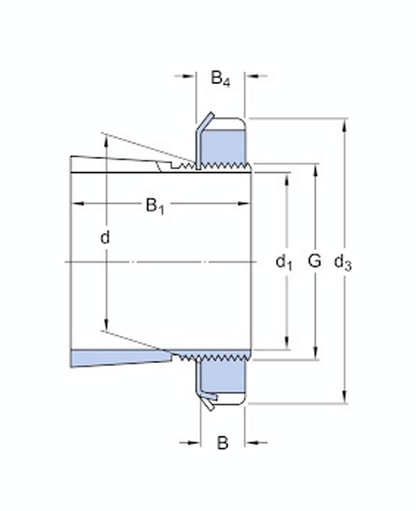

Parameter Typical Value
Designation H322
Suitable Shaft Diameter (d) 110 mm
Adapter Sleeve Bore (d1) ~115 mm (slightly larger than shaft)
Thread Size (Lock Nut) M115Ɨ2
Sleeve Width (B) ~75 mm
Lock Nut & Lock Washer Included (KM22 Nut, MB22 Washer)
Material High-strength steel, case hardened
Used With Tapered bore bearings (e.g., 22222K, etc.)
Application Industrial machinery, conveyors, fans, etc.

šŸ”§ Function

  • Allows mounting of tapered bore bearings onto cylindrical shafts.

  • The lock nut and washer secure the bearing and prevent axial movement.

  • Enables easy installation/removal without damaging the shaft or bearing.
