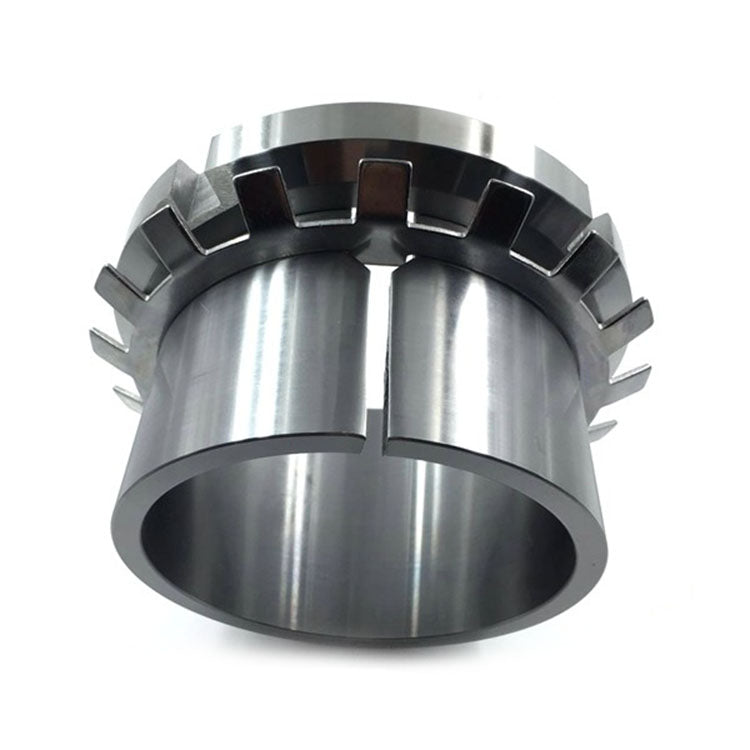

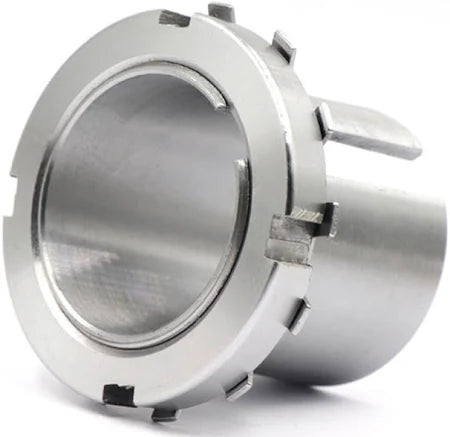

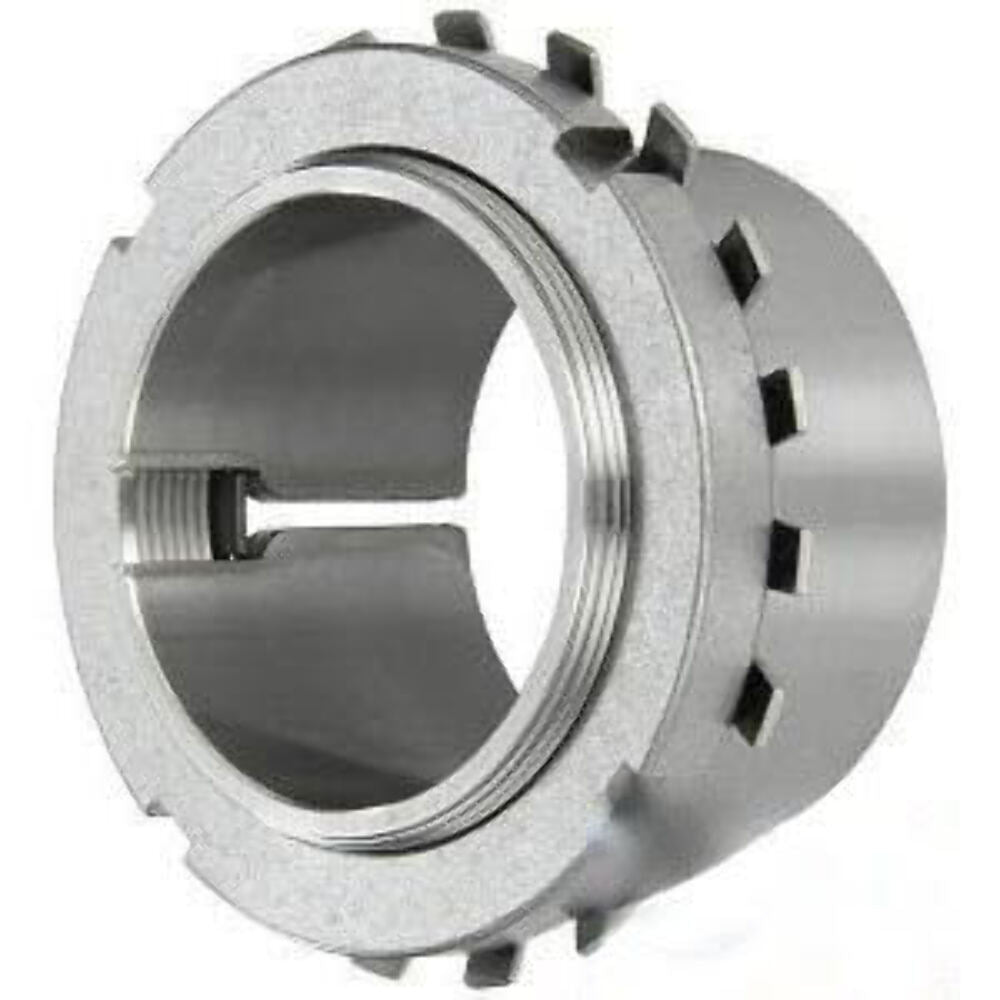

🛠️ H3132 Bearing Adapter Sleeve with Lock Nut & Washer
Parameter
Specification

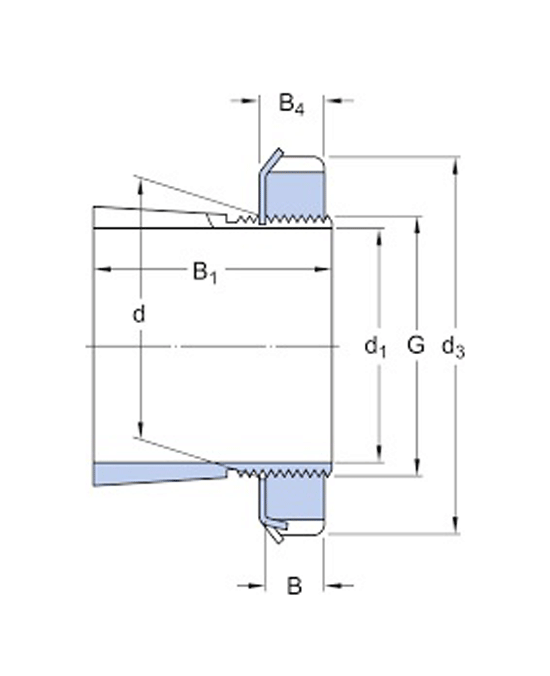

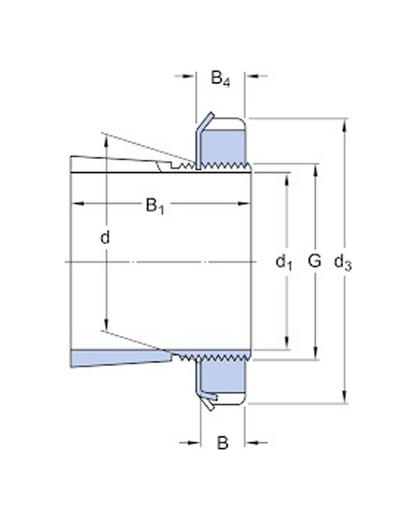

Designation
H3132
Suitable Shaft Diameter (d)
140 mm
Adapter Sleeve Bore (d1)
~145 mm
Thread Size (Lock Nut)
M145×2
Sleeve Width (B)
Approx. 95–100 mm

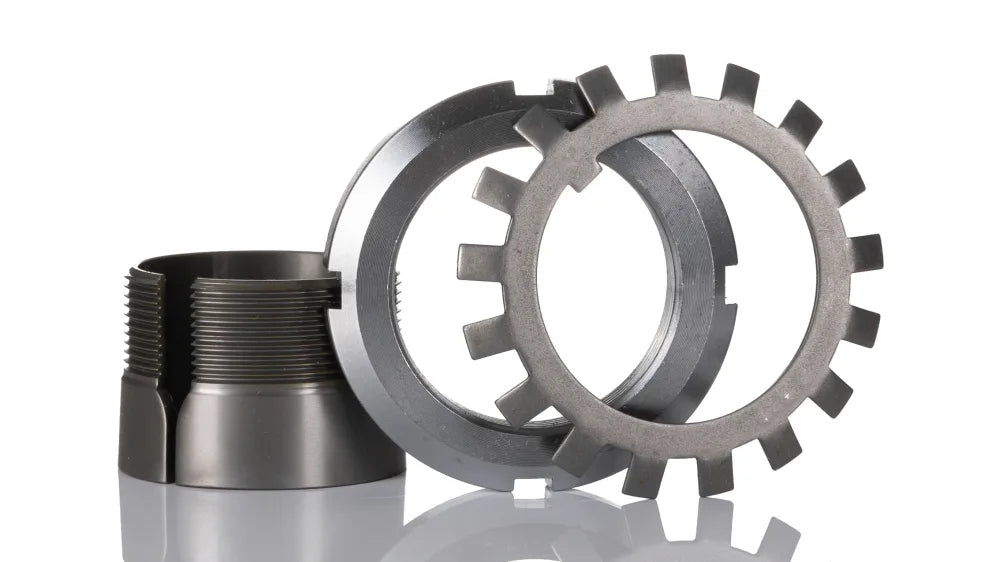

Lock Nut & Washer
Included (Typically KM32 Nut & MB32 Washer)
Material
High-quality case-hardened carbon steel
Surface Finish
Precision ground
Weight
Approx. 9 to 11 kg (varies by brand)
🔧 Function & Use
The H3132 adapter sleeve is used to mount tapered bore bearings onto cylindrical shafts, offering a secure, self-locking fit that’s both robust and easily adjustable. When the lock nut is tightened, the sleeve expands slightly to press the bearing onto the shaft, creating a tight, secure, and vibration-resistant hold.
