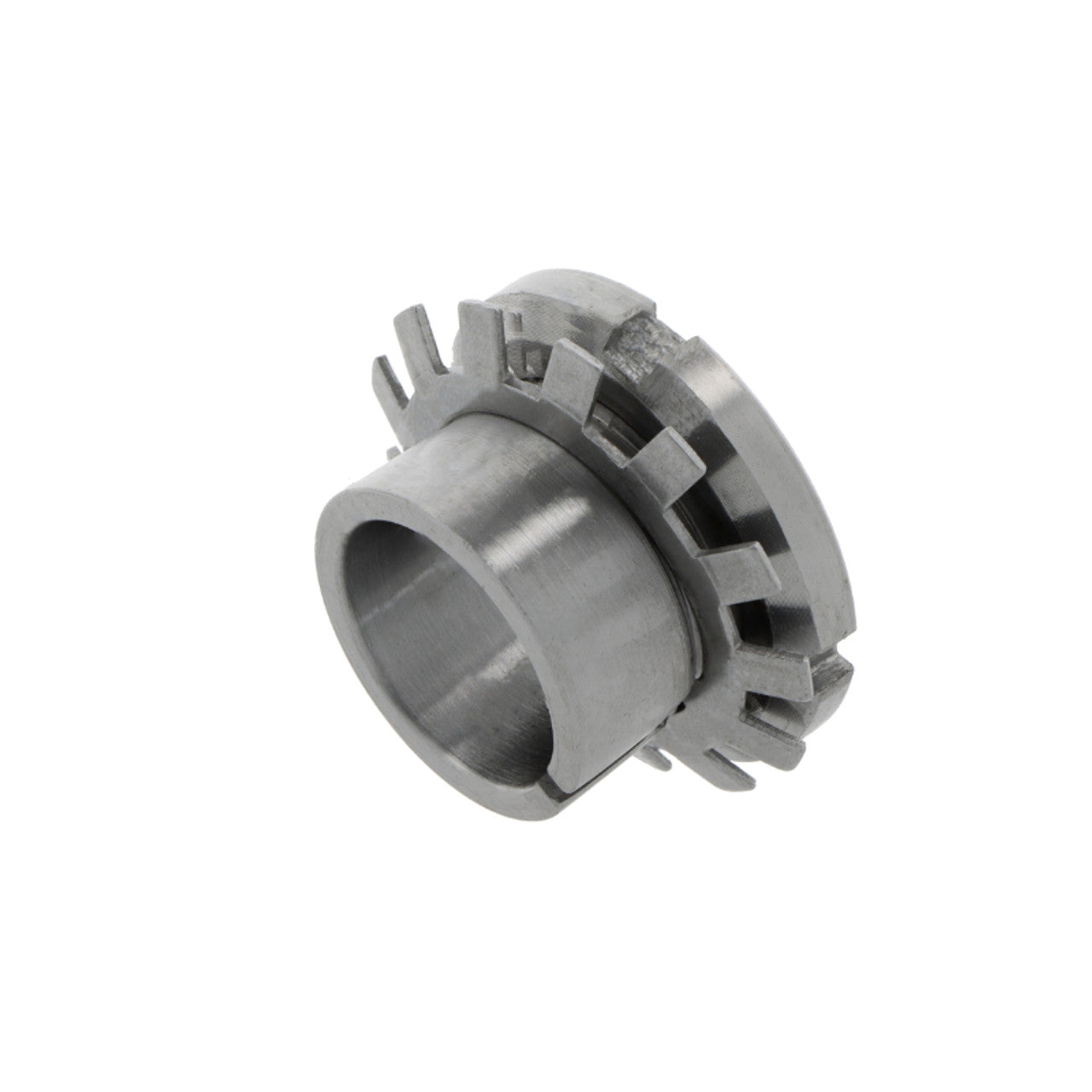

H306 Bearing Adapter Sleeve with Lock Nut & Washer
H306 Bearing Adapter Sleeve with Lock Nut & Washer
Regular price
$7.99
Regular price
$24.00
Sale price
$7.99
Unit price
/
per
Couldn't load pickup availability
🔩 H306 Adapter Sleeve Specifications:

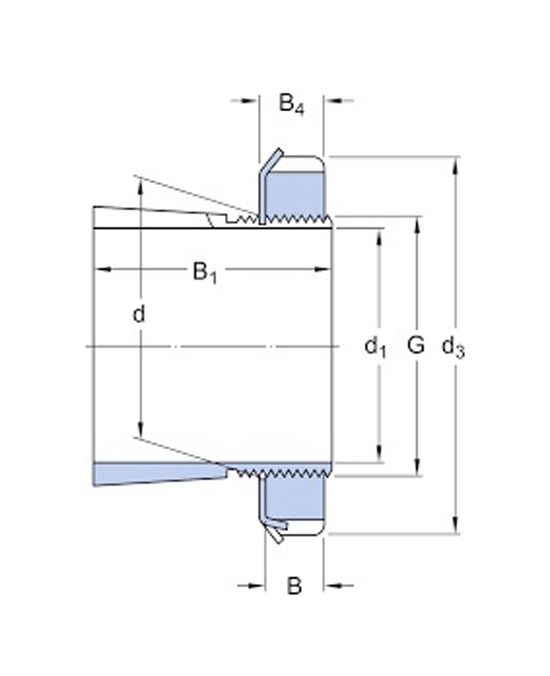

Parameter | Value |
---|---|
Designation | H306 |
Shaft Diameter (d) | 25 mm |
Bore Diameter (d1) | 30 mm |
Thread (G) | M25×1.5 |
Width (B1) | ~32 mm |
Lock Nut | KM6 |
Lock Washer | MB6 |
Suitable Bearings | 1206K, 2206K, 1306K, etc. |
This adapter sleeve is used to mount bearings with a tapered bore onto a cylindrical shaft and includes a lock nut and washer for secure positioning.
