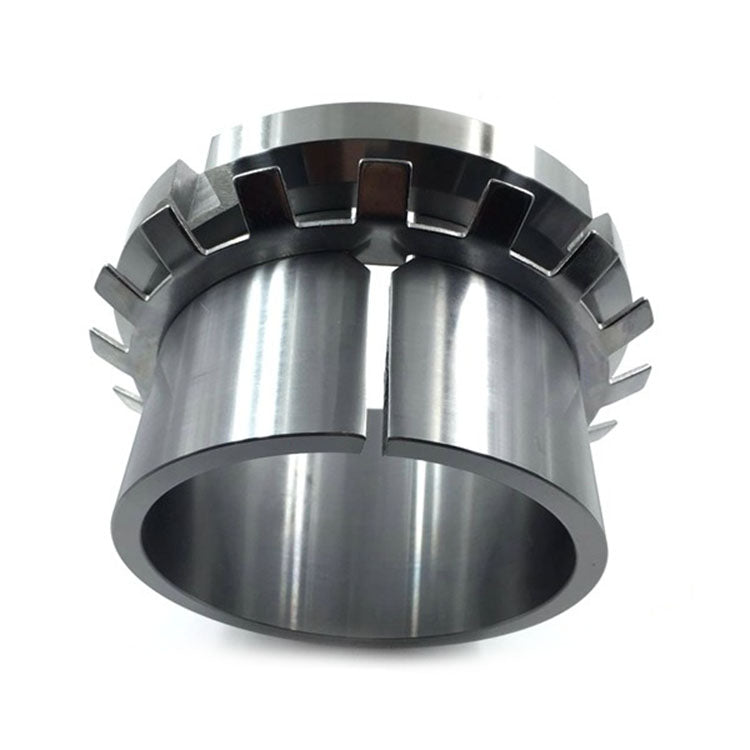

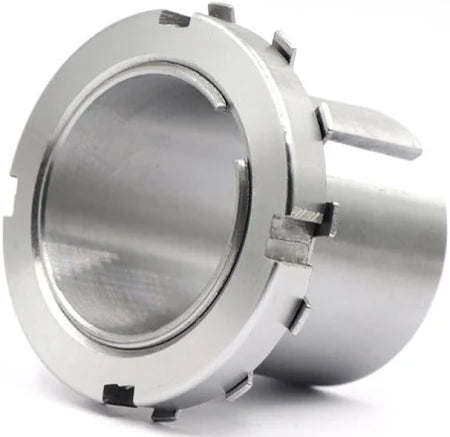

H3024 Bearing Adapter Sleeve with Lock Nut & Washer

H3024 Bearing Adapter Sleeve with Lock Nut & Washer

$49.99
$89.99 $49.99
Sale Sold out

H3024 Bearing Adapter Sleeve with Lock Nut & Washer

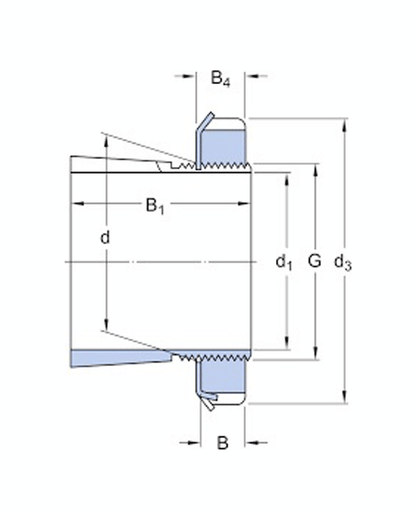

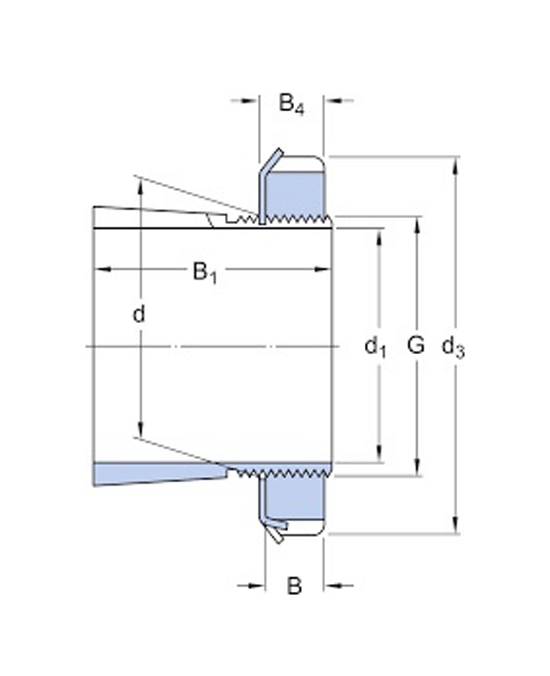

Parameter Typical Value / Description
Designation H3024
Suitable Shaft Diameter (d) Approximately 120 mm
Adapter Sleeve Bore Diameter (d1) Slightly larger than shaft diameter, e.g., ~125 mm
Thread Size (Lock Nut) Typically M125×2 (confirm exact size)
Width of Sleeve (B) Around 80 mm

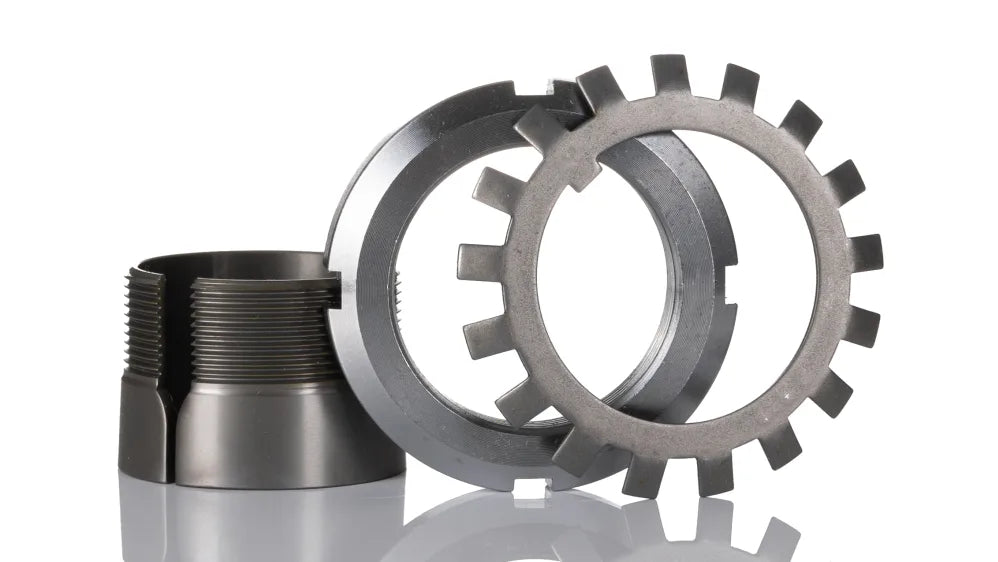

Lock Nut & Washer Included for secure fixation
Material Hardened steel, case hardened surface
Application For mounting tapered bore bearings on cylindrical shafts

Summary:

  • Used to mount tapered bore bearings onto cylindrical shafts.

  • Lock nut and washer ensure axial fixation and secure mounting.

  • Common in heavy-duty industrial applications.
