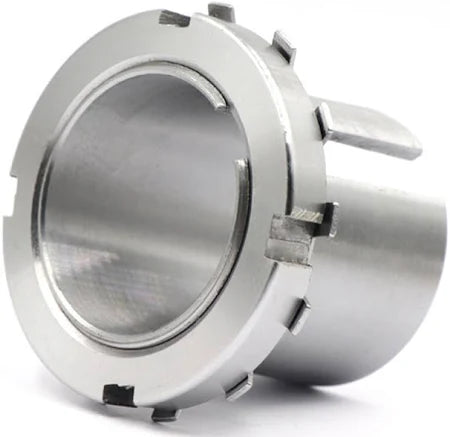

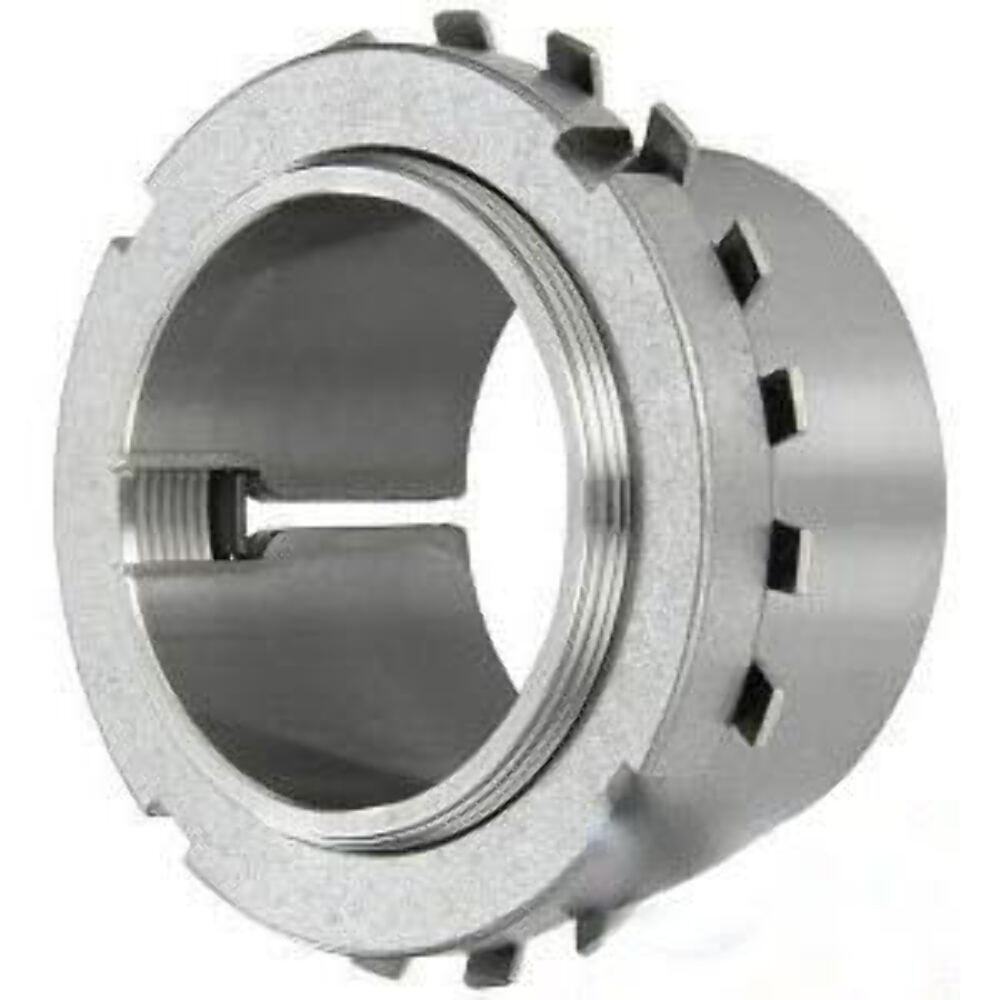

H2326 Bearing Adapter Sleeve with Lock Nut & Washer
H2326 Bearing Adapter Sleeve with Lock Nut & Washer
Couldn't load pickup availability
š ļø H2326 Bearing Adapter Sleeve with Lock Nut & Washer

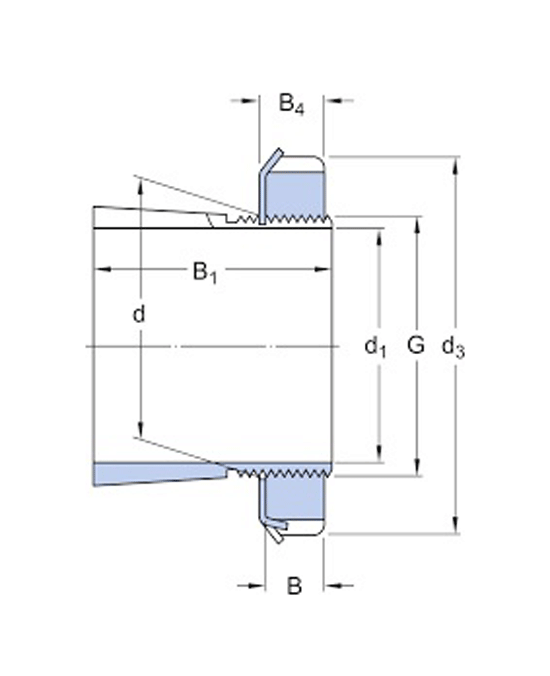

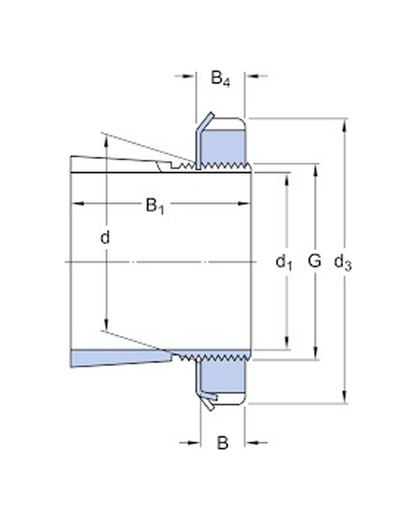

| Parameter | Specification |
|---|---|
| Designation | H2326 |
| Suitable Shaft Diameter (d) | 115 mm |
| Adapter Sleeve Bore (d1) | ~125 mm |
| Thread Size (Lock Nut) | M125Ć2 |
| Sleeve Width (B) | Approx. 90ā95 mm |

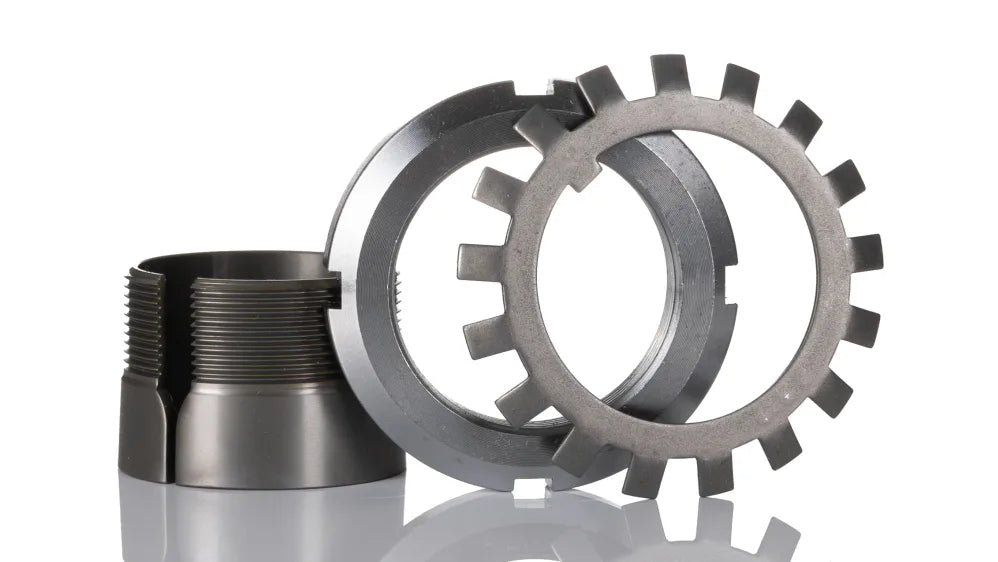

| Lock Nut & Washer | Included (Typically KM26 Nut & MB26 Washer) |
| Material | Case-hardened carbon steel |
| Surface Finish | Precision ground and machined |
| Approximate Weight | ~7 to 9 kg (may vary by manufacturer) |
š§ Purpose & Function
The H2326 adapter sleeve is engineered for mounting spherical roller bearings with a tapered bore onto cylindrical shafts. The adapter sleeve allows secure and accurate mounting without having to machine a tapered shaft.
When the lock nut is tightened, the sleeve expands slightly, pressing into the bearing bore and gripping the shaft. The lock washer ensures vibration resistance by preventing the nut from backing off under operational loads.
ā Typical Applications
-
Heavy industrial equipment
-
Electric motors
-
Mining conveyors & crushers
-
Steel, paper, and cement processing
-
Material handling systems
-
Pumps, compressors, and gearboxes
The H2326 is particularly suitable for demanding environments requiring high-load capacity and serviceability.
