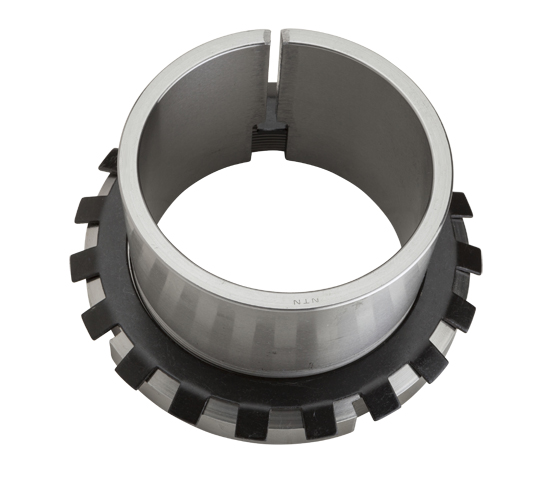

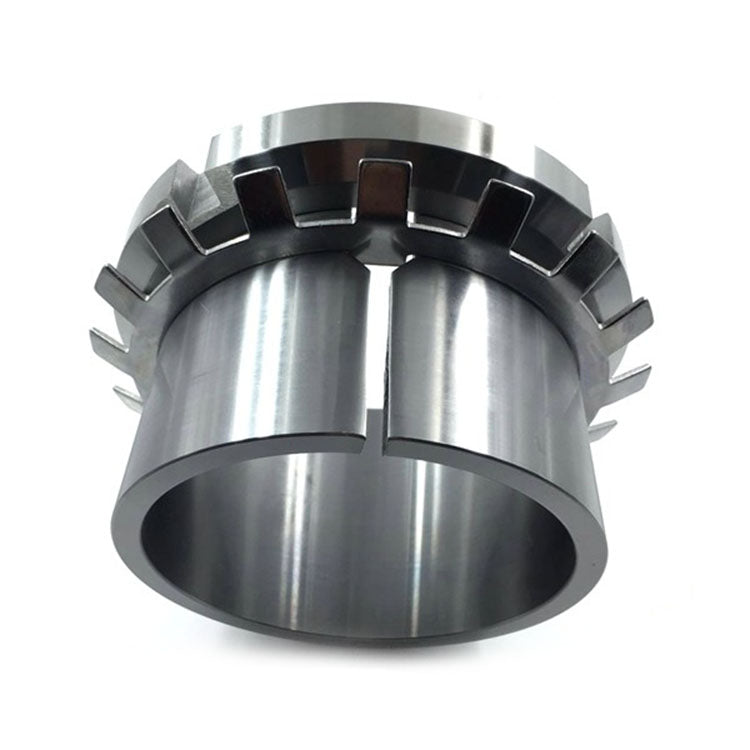

H219 Bearing Housing Adapter Sleeve with Lock Nut & Washer

H219 Bearing Housing Adapter Sleeve with Lock Nut & Washer

$19.99
$59.99 $19.99
Sale Sold out

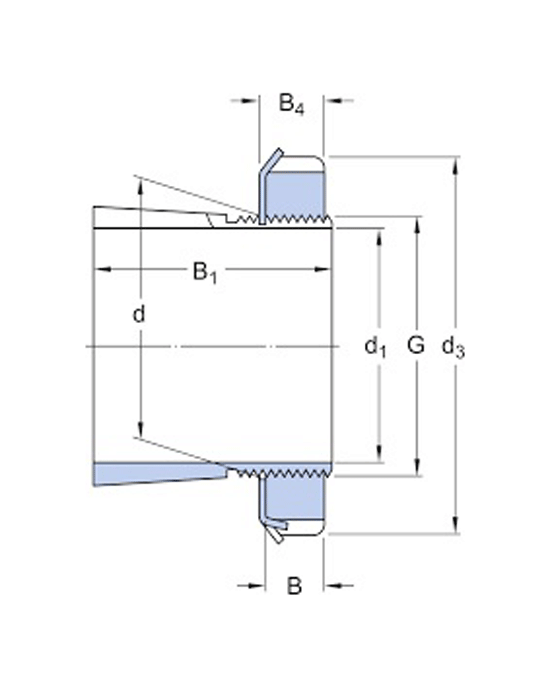

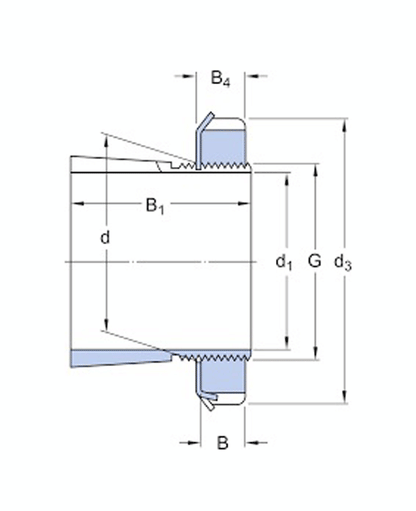

H219 Adapter Sleeve Specifications

Feature Specification
Adapter Sleeve Designation H219
Suitable Shaft Diameter (d) 85 mm
Bore Diameter of Sleeve (d1) 90 mm
Thread (G) M90 × 2
Sleeve Width (B1) ~60 mm
Lock Nut Designation KM19
Lock Washer Designation MB19
Compatible Bearings 2219K, 1319K, 1219K, etc.
Material Typically carbon steel
Used With Tapered bore bearings on cylindrical shafts

This sleeve assembly allows a tapered bore bearing to be mounted onto a straight shaft by tightening the lock nut, which pulls the bearing onto the sleeve and locks it in place using the washer.
