2BK52-1 1/8" Solid Sheave Pulley With OD: 4.95" Two Grooves Fixed Bore 1 1/8" 2BK52118

2BK52-1 1/8" Sheave Pulley With OD: 4.95 Two Grooves 2BK52 1" for V-Belts size 5L, B, BX, 2BK52118 (OD: 4.95" - ID : 1 1/8") Fixed Bore 1 1/8" 2BK52118

2BK52-1 1/8" Sheave Pulley With OD: 4.95" Two Grooves Fixed Bore 1 1/8" inch

2BK52-1 1/8" Outside diameter: 4.95" inch Bore : 1 1/8" inch Belt section size: 5L - B - 5/8" Two Grooves One pulley Hex set screws keyway: 3/16" × 3/32 "

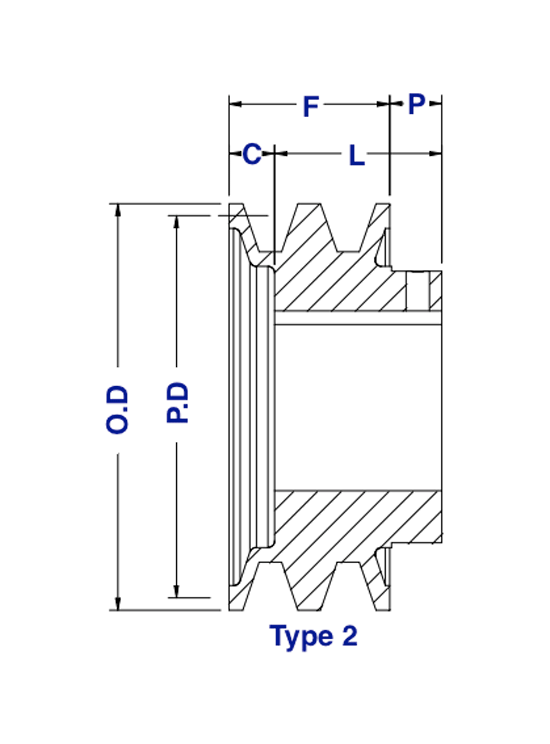

Pulley Size: 2BK52

Outside Diameter (O.D.): 4.95"

Pitch Diameter For 4L/A Belts (P.D.): 4.20"

Pitch Diameter For 5L/B Belts (P.D.): 4.60"

Pulley Type: 2
Bore
Size: 1 1/8" inch
Key-Way Size: 3/16" X 3/32"

Dimension (F): 1-3/4"

Dimension (L): 1-15/32"

Dimension (P): 15/32"

Dimension (C): 3/4"

Weight: 4.5 LBS
