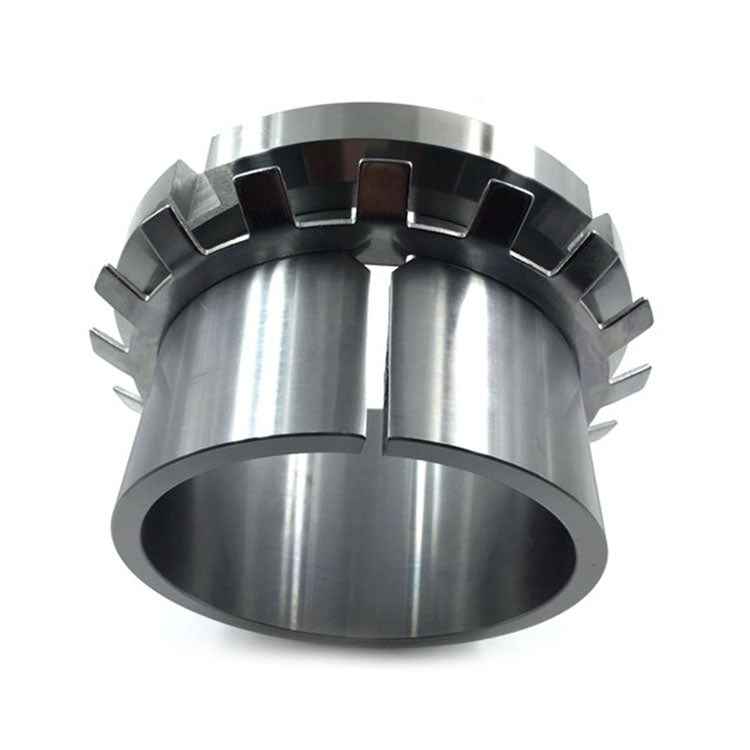

H307 Bearing Adapter Sleeve
With Lock Nut & Lock Washer

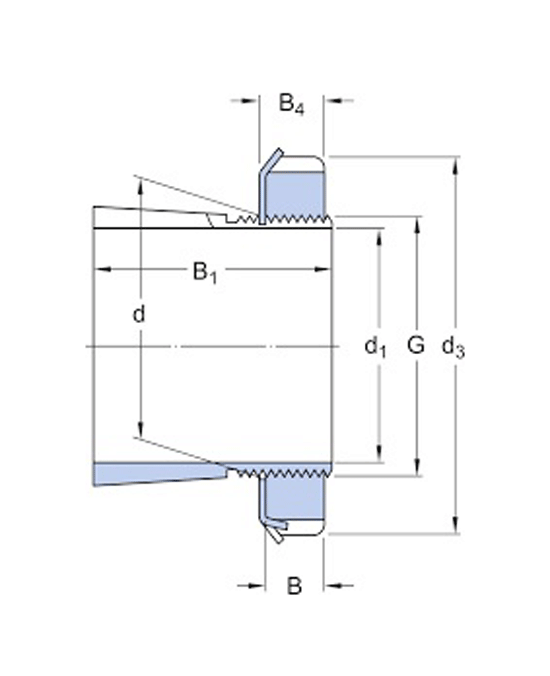

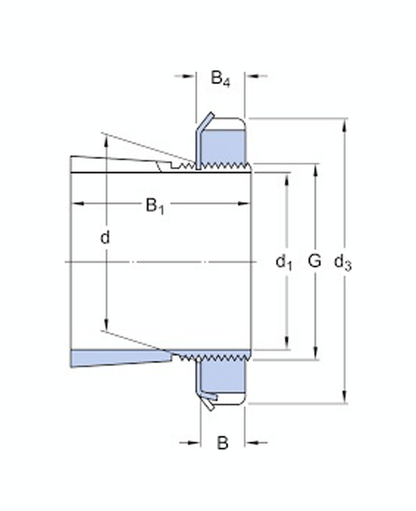

| Parameter |
Specification |
| Adapter Sleeve Designation |
H307 |
| Suitable Shaft Diameter (d) |
35 mm |
| Adapter Sleeve Bore (d1) |
40 mm |
| Thread (G) |
M35 × 1.5 |
| Width (B1) |
~40 mm |
| Lock Nut |
KM7 |
| Lock Washer |
MB7 |
| Common Bearing Fit |
1207K, 2207K, 1307K, etc. |
| Material |
Carbon Steel or Alloy Steel |
| Standard |
DIN 5415 / ISO 2982-1 |
