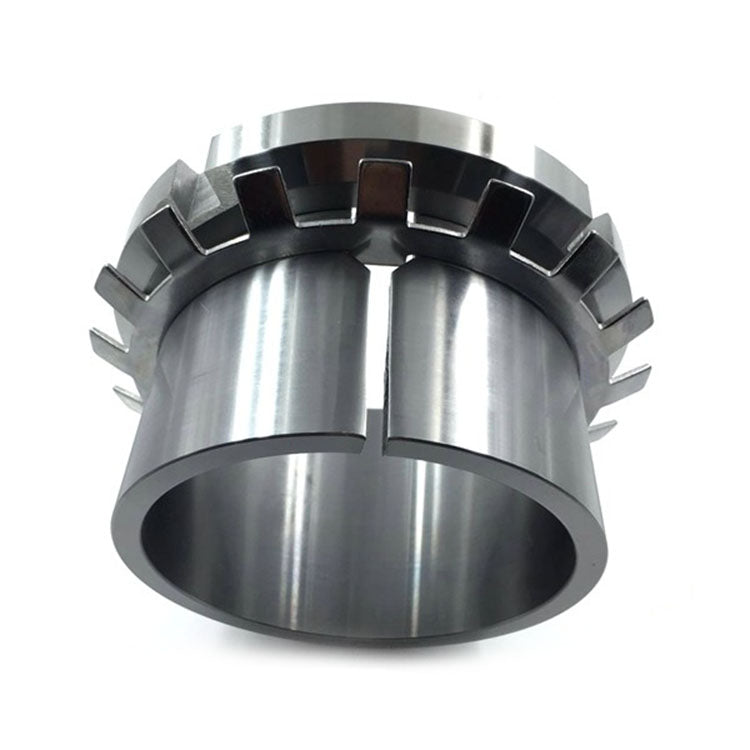

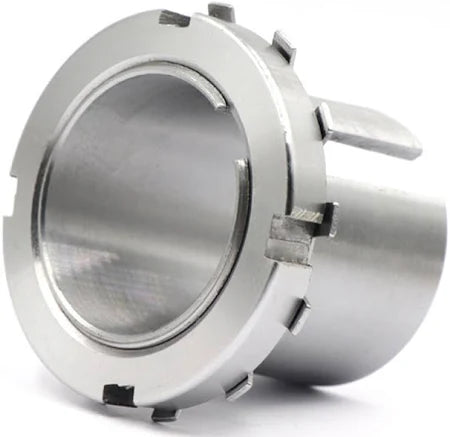

H3026 Bearing Adapter Sleeve with Lock Nut & Washer
H3026 Bearing Adapter Sleeve with Lock Nut & Washer
Regular price
$59.99
Regular price
$89.99
Sale price
$59.99
Unit price
/
per
Couldn't load pickup availability
H3026 Bearing Adapter Sleeve with Lock Nut & Washer

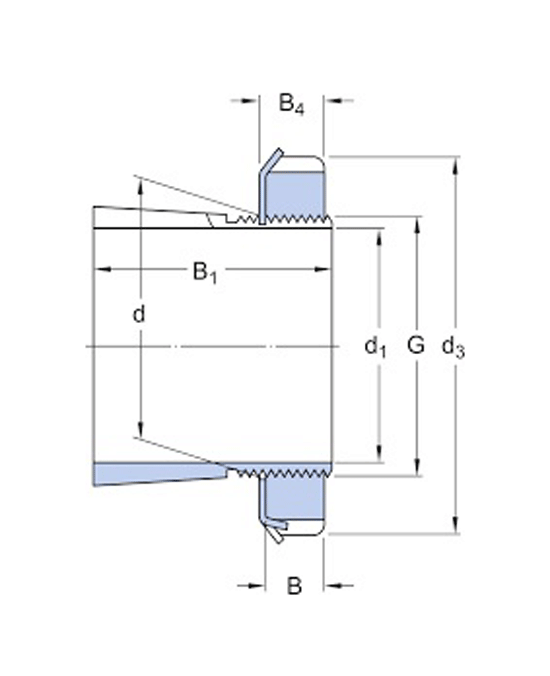

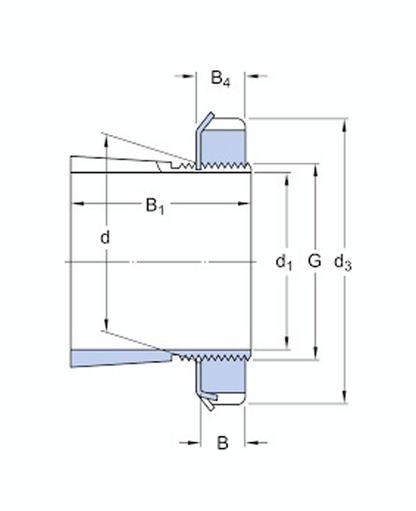

| Parameter | Typical Value / Description |
|---|---|
| Designation | H3026 |
| Suitable Shaft Diameter (d) | Approximately 130 mm |
| Adapter Sleeve Bore Diameter (d1) | Slightly larger than shaft diameter, typically around 135 mm |
| Thread Size (Lock Nut) | Commonly M135×2 or equivalent (verify exact size with supplier) |
| Sleeve Width (B) | Typically around 85–90 mm |

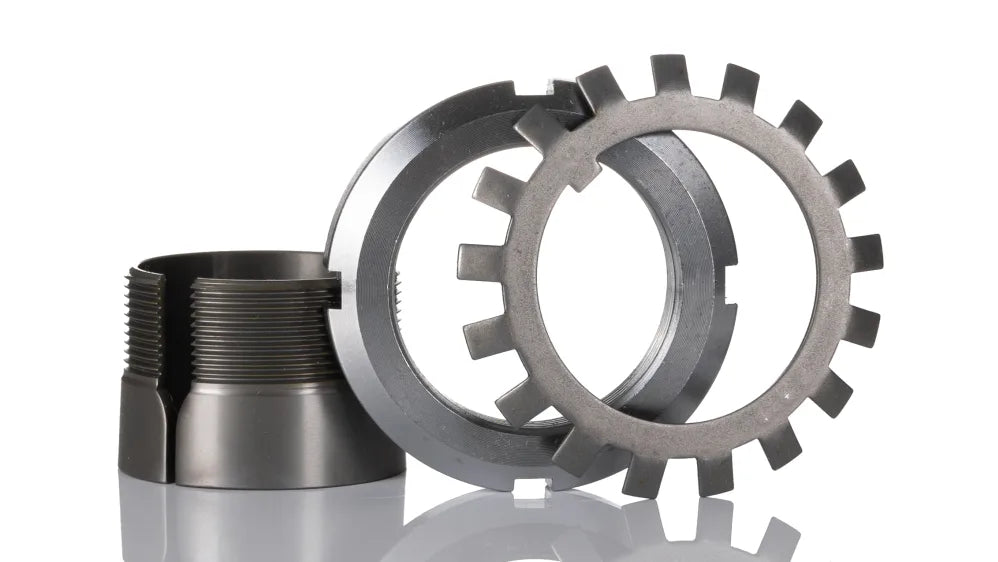

| Lock Nut & Washer | Included for secure axial fixation |
| Material | High-strength case-hardened steel |
| Surface Finish | Precision ground for smooth fitting and ease of installation |
| Approximate Weight | Between 3.0 to 4.5 kg depending on manufacturer |
Function and Application
The H3026 adapter sleeve is designed to mount tapered bore bearings onto cylindrical shafts, providing a secure and tight fit. When the lock nut is tightened, the sleeve presses the bearing onto the shaft, preventing slippage and ensuring stable operation under load.
Typical applications include:
-
Heavy industrial machinery
-
Conveyor systems
-
Gearboxes and drive units
-
Agricultural and construction equipment
-
Fans, pumps, and compressors
